ZLQ Phenolic Resin Fiber Bonded Filter Cartridge — The most efficient filtration solution for viscous, soluble, and high-temperature fluids. Patented technology filters particles from 1μm to 200μm, suitable for petrochemical, automotive, food & beverage and other demanding industrial environments.
10+
Years Experience
10
Filtration Grades
20+
Industries
50"
Max Custom Length
Phenolic Resin Filter
ZLQ Patent Product
1-200μm
Filtration Range
Direct Manufacturer
Factory Direct Pricing
Custom Solutions
Made to Your Specs
Silicon-Free
Zero Pollution
Long Lifespan
Low Pressure Drop
Phenolic Resin Filter Series
Using unique customized long fibers bonded with phenolic resin, suitable for industrial filtration of viscous, soluble, and high-temperature fluids
Standard Phenolic Resin Filter
ZLQ Series · 1-200μm · For viscous, soluble & high-temp fluids

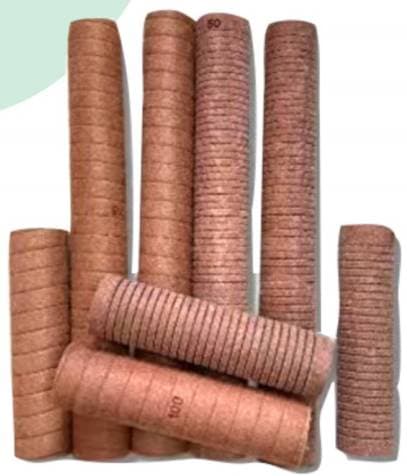

Lubricating Oil Mist Filter
For viscous fluids like oil mist and emulsions
Petrochemical Filter
For petroleum products, organic solvents, chemical raw materials

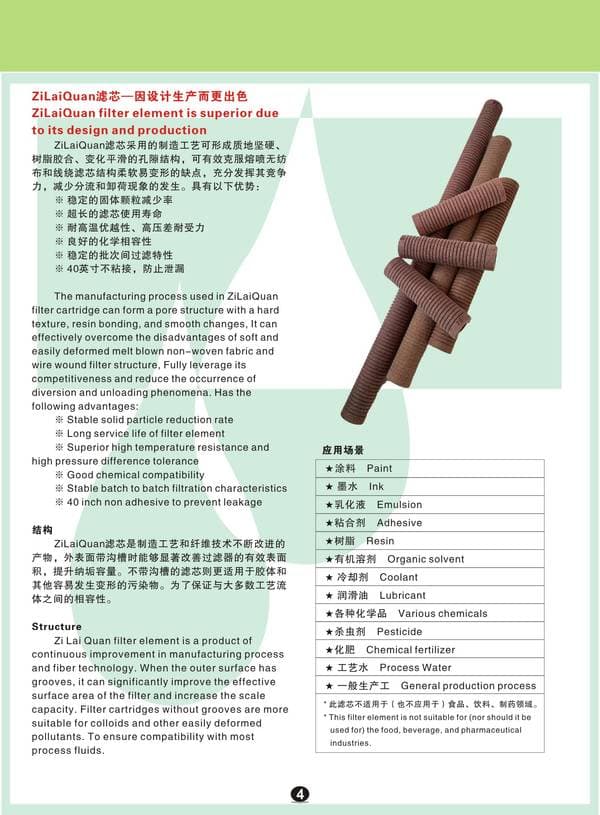

Organic Solvent Filter
Xylene, petroleum ether, ethyl acetate, ethanol etc.

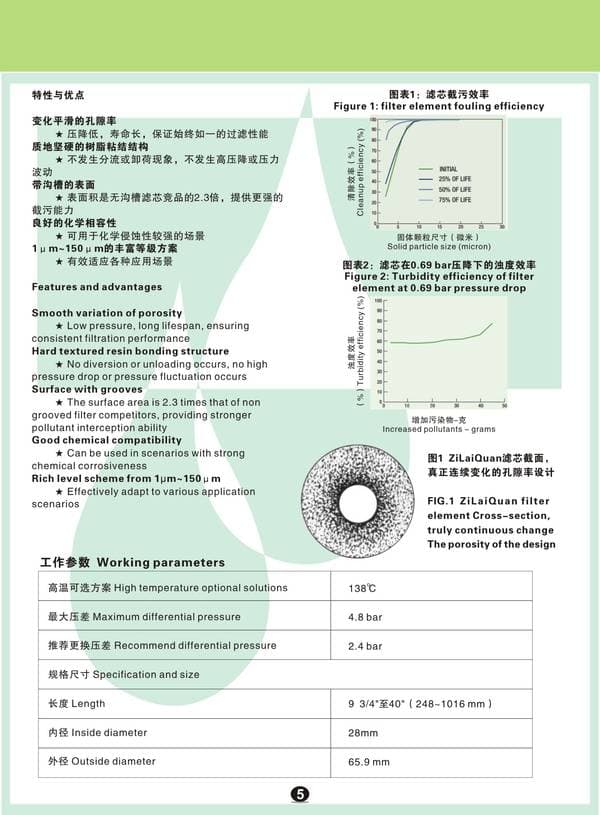

Hydraulic Oil Filter
For hydraulic oil, transformer oil and other industrial oils

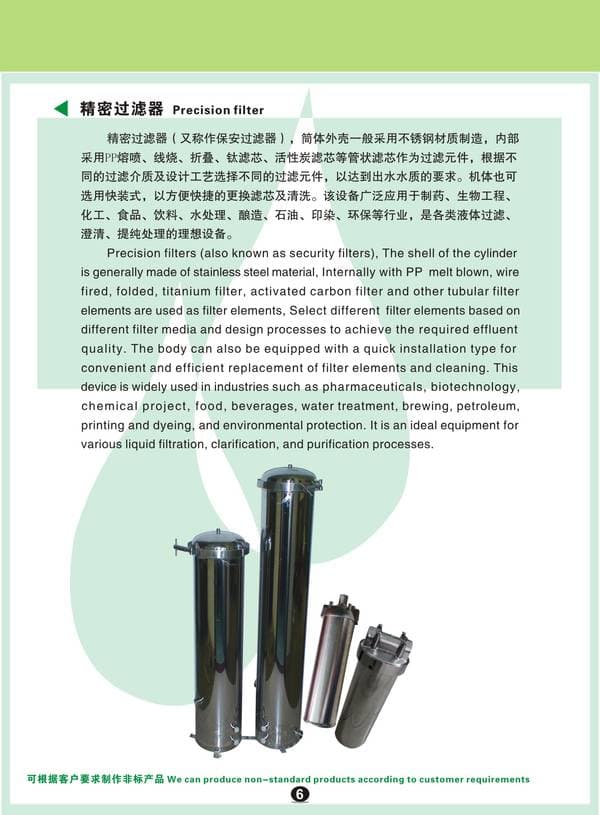

Air Freshener Filter
For cosmetics and fine chemicals filtration
Also suitable for: paint, printing ink, optical thin film, adhesive, latex, sewage, liquid dye, paraffin, plasticizer, film developer, etc.
Why Choose ZLQ Filter Cartridges?
Spiral Pre-filtration
Spiral pre-filtration on the outer surface increases filtration area, aggregates large particles, and improves pollutant holding capacity.
Deep Filtration
Inner layer controls rated small particle filtration. Deep filtration technology eliminates mechanical processing damage.
Anti-Viscosity
Unique phenolic resin formula provides oil/viscosity/dissolution resistance. Suitable for fluids up to 15,000 SSU viscosity.
Silicon-Free
Silicon-free structure ensures zero pollution. Never affects bonding performance. Suitable for pH 4-9.
Pressure Rating
Pressure fluctuation up to 150 psid (depending on fluid temperature)
Max Temperature
Operating temperature up to 123.5°C
Custom Length
Product length can be customized up to 50 inches (1270mm)

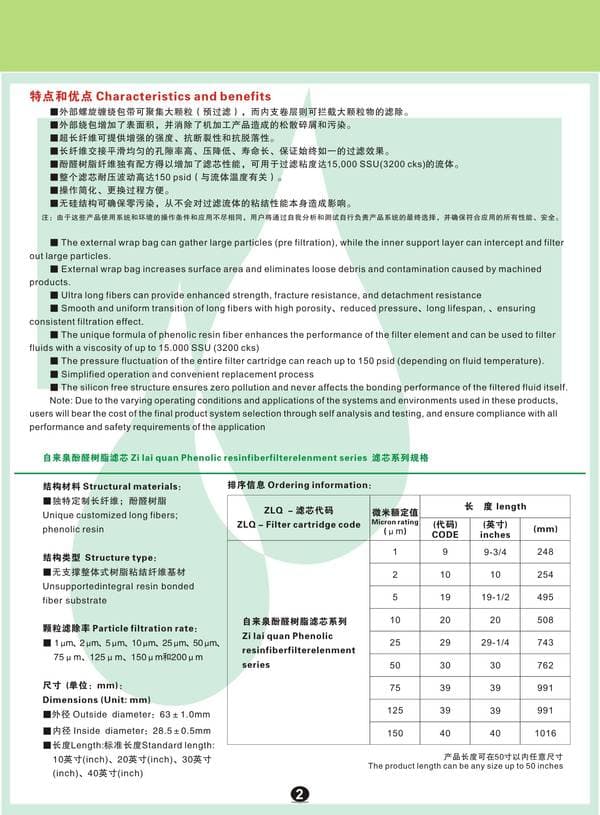

ZLQ Phenolic Resin Filter Series Specifications
Structure & Materials
Ordering Information
| μm | Code | Length (in) | Length (mm) |
|---|---|---|---|
| 1 | 9 | 9-3/4 | 248 |
| 2 | 10 | 10 | 254 |
| 5 | 19 | 19-1/2 | 495 |
| 10 | 20 | 20 | 508 |
| 25 | 29 | 29-1/4 | 743 |
| 50 | 30 | 30 | 762 |
| 75 | 39 | 39 | 991 |
| 150 | 40 | 40 | 1016 |
Note: Product length can be any size up to 50 inches

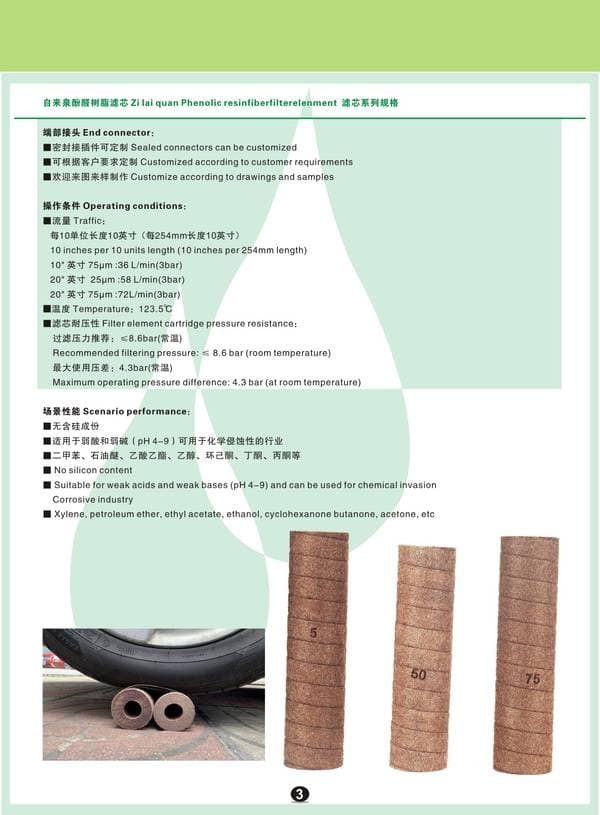

Operating Conditions
Flow Parameters
Scenario Performance
Wide Industrial Applications
Automotive Topcoat
Paint/Ink
Petrochemical
Adhesive
Oilfield Mid-Flow
Resin/Coatings
Latex
Sewage/Wash
Organic Solvent
Petroleum Products
Process Water
Cutting Fluid
Liquid Dye
Transformer Oil
Hydraulic Oil
Paraffin/Plasticizer
